今天的主题是：

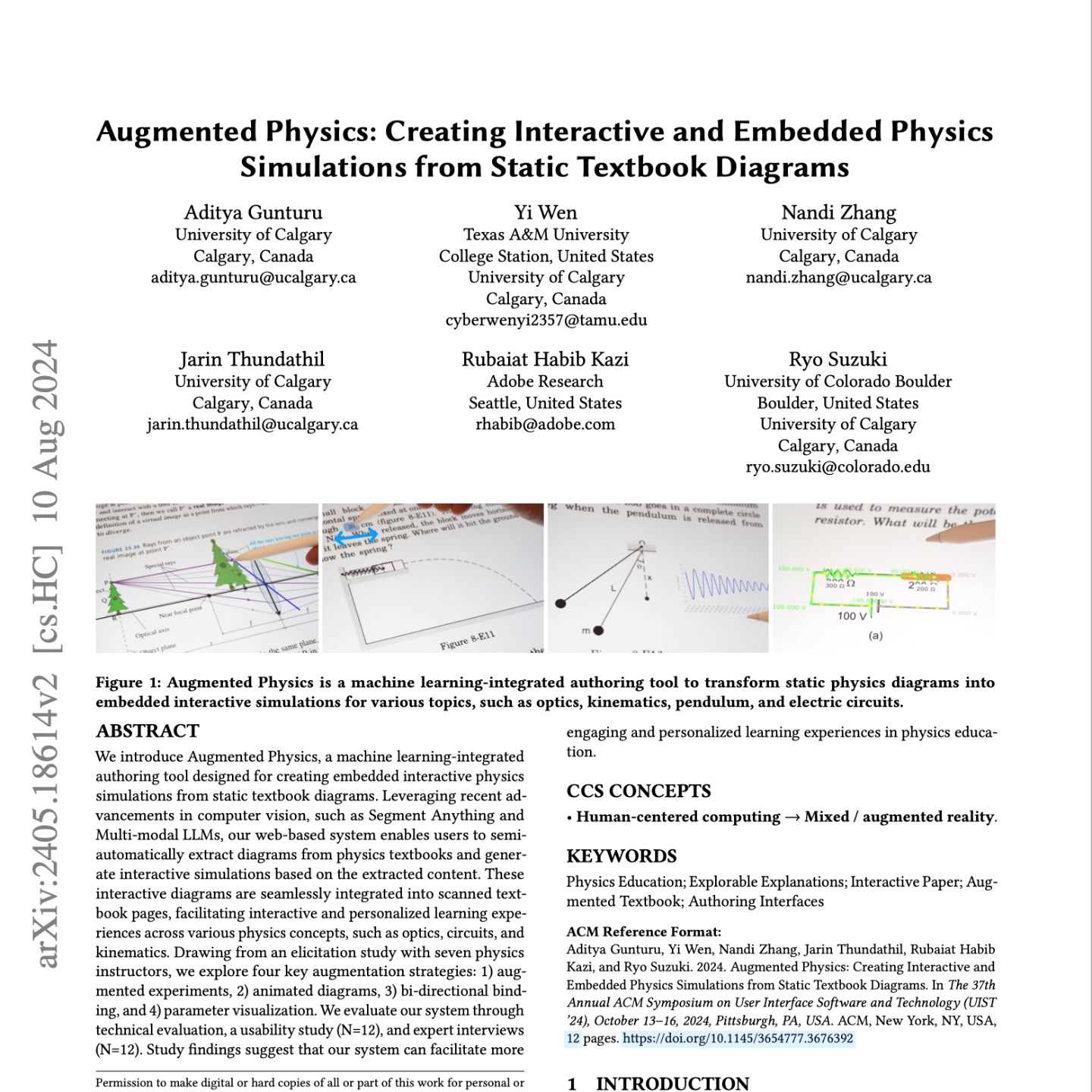

Augmented Physics: Bringing Textbook Diagrams to LifAugmented Physics: Creating Interactive and Embedded Physics

Problem: The limitations of static learning materials

The authors identify several key challenges in current physics education stemming from the reliance on static visualizations:

• Difficulty representing time-dependent concepts: Static diagrams struggle to effectively convey concepts involving motion or dynamic systems.
• Limited interactivity in videos: While videos offer a dynamic representation, they lack the interactivity crucial for intuitive learning and experimentation.
• Lack of instructional scaffolding in online simulators: Existing simulators often lack the context and guidance found in textbooks, making them challenging for novice learners.
• Misalignment and distractions from external content: Sourcing external resources like YouTube videos can introduce inconsistencies with classroom materials and lead to distractions.

Solution: Augmented Physics, an interactive learning tool

Augmented Physics is a machine learning-integrated authoring tool designed to address these challenges. The system enables users to:

• Semi-automatically extract diagrams from textbooks: Leveraging advanced computer vision techniques like Segment-Anything and Multi-modal LLMs, users can easily isolate and segment elements from textbook images.
• Generate interactive simulations based on extracted content: The segmented images are converted into simulation-ready objects, allowing for dynamic manipulation and real-time feedback.
• Seamlessly integrate simulations into textbook pages: The interactive simulations are directly overlaid onto the textbook PDF, providing a contextualized and integrated learning experience.

Four Key Augmentation Strategies

Informed by a formative study with physics instructors, the authors implemented four key augmentation strategies:

1. Augmented Experiments: Users can manipulate textbook diagrams and observe real-time changes based on physics principles. For example, adjusting the position of a lens in an optics diagram or modifying resistance values in a circuit.
2. Animated Diagrams: Static diagrams are converted into looped animations to demonstrate dynamic processes. This can involve animating an object's trajectory or visualizing wave propagation.
3. Bi-Directional Binding: Linking parameter values from text to the simulation allows users to modify values within the text and observe real-time effects on the simulation, and vice-versa.
4. Parameter Visualization: Users can visualize selected parameter values through dynamic graphs, providing insights into changing variables like velocity or energy.

Technical Evaluation and User Studies

The system was evaluated through technical evaluations, a usability study with 12 participants, and expert interviews with 12 physics instructors. Key findings include:

• High success rate for object segmentation: The system achieved an 86% success rate in accurately segmenting objects from diagrams.
• Varying success rates across simulation types: The overall success rates for generating functional simulations without modification were 64% for kinematics, 44% for optics, and 40% for circuits.
• Positive user feedback: Users found the system intuitive and engaging, particularly appreciating the Parameter Visualization and Bi-Directional Binding features.
• Complementary role to existing resources: Experts viewed Augmented Physics as a valuable tool for personalized learning and self-led exploration, complementing rather than replacing existing online resources and live experiments.

Limitations and Future Directions

The paper acknowledges several limitations and outlines future research directions:

• Scaling to more complex concepts and broader domains: Future work will focus on expanding the system's capabilities to handle more complex physics topics and diverse diagram styles.
• Integration with AR devices: The authors envision implementing the system within AR environments to enhance immersion and engagement.
• Leveraging AI for enhanced learning: Further exploration of multimodal LLMs could enable intelligent tutoring features and automated simulation generation.

Conclusion

Augmented Physics presents a promising approach to enriching physics education by bringing textbook diagrams to life. By seamlessly integrating interactive simulations into existing learning materials, the system empowers students to engage with complex concepts in a personalized and intuitive manner. Future research will focus on expanding its capabilities and exploring its potential for large-scale deployment and integration with advanced technologies like AR and AI.

原文链接：https://arxiv.org/abs/2405.18614
